DA867 PVC keder hem

Sewing plant with piping feed for sewing the upper and lower hem on awnings.

Application

Sewing plant for precise and efficient sewing of upper and lower piping hems on awnings. With slanted roll table to put the rolled awning during sewing process.

Work operations

2 Picto double hem keder3 Picto hem keder4 Picto keder single flap

Characteristics

  • Application optimised design of the plant
  • Dürkopp Adler sewing head with triple transport
  • Stitch length: 5.5 mm
  • Sewing speed: 2800 rpm
  • Stitch counter for lower thread
  • Guide with integral piping feed
  • Intermittend puller
  • Roller table: 2 x 3 m or 2 x 6 m
  • Electric input: 230V
  • Compressed air: 6 bar

Concept

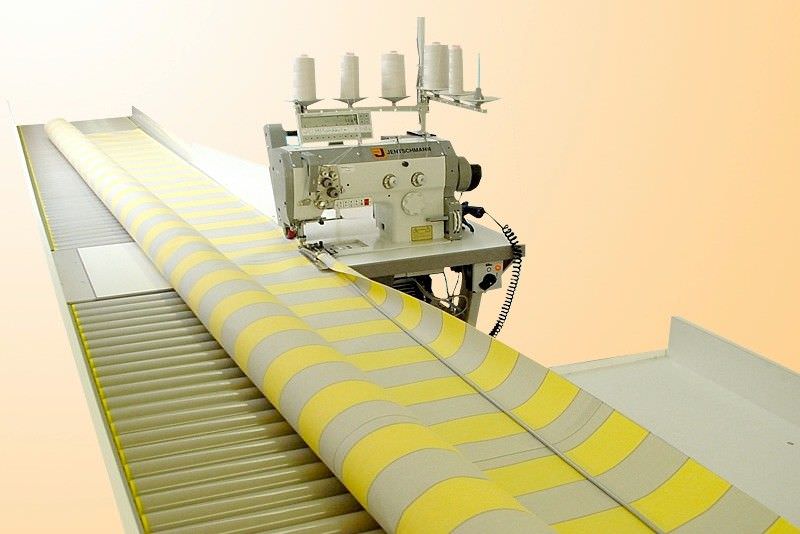

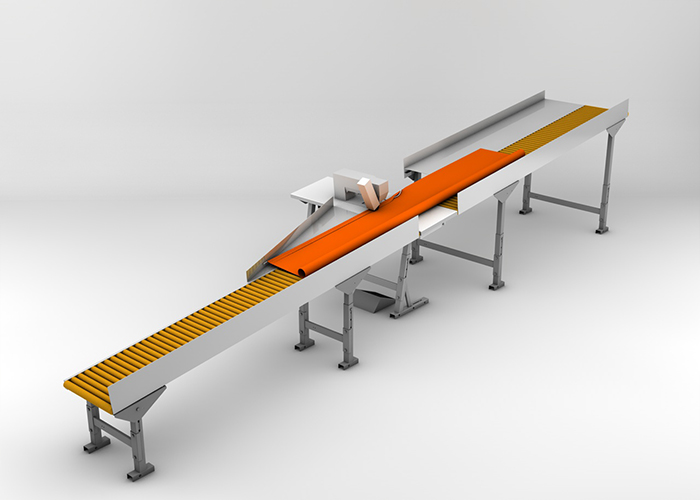

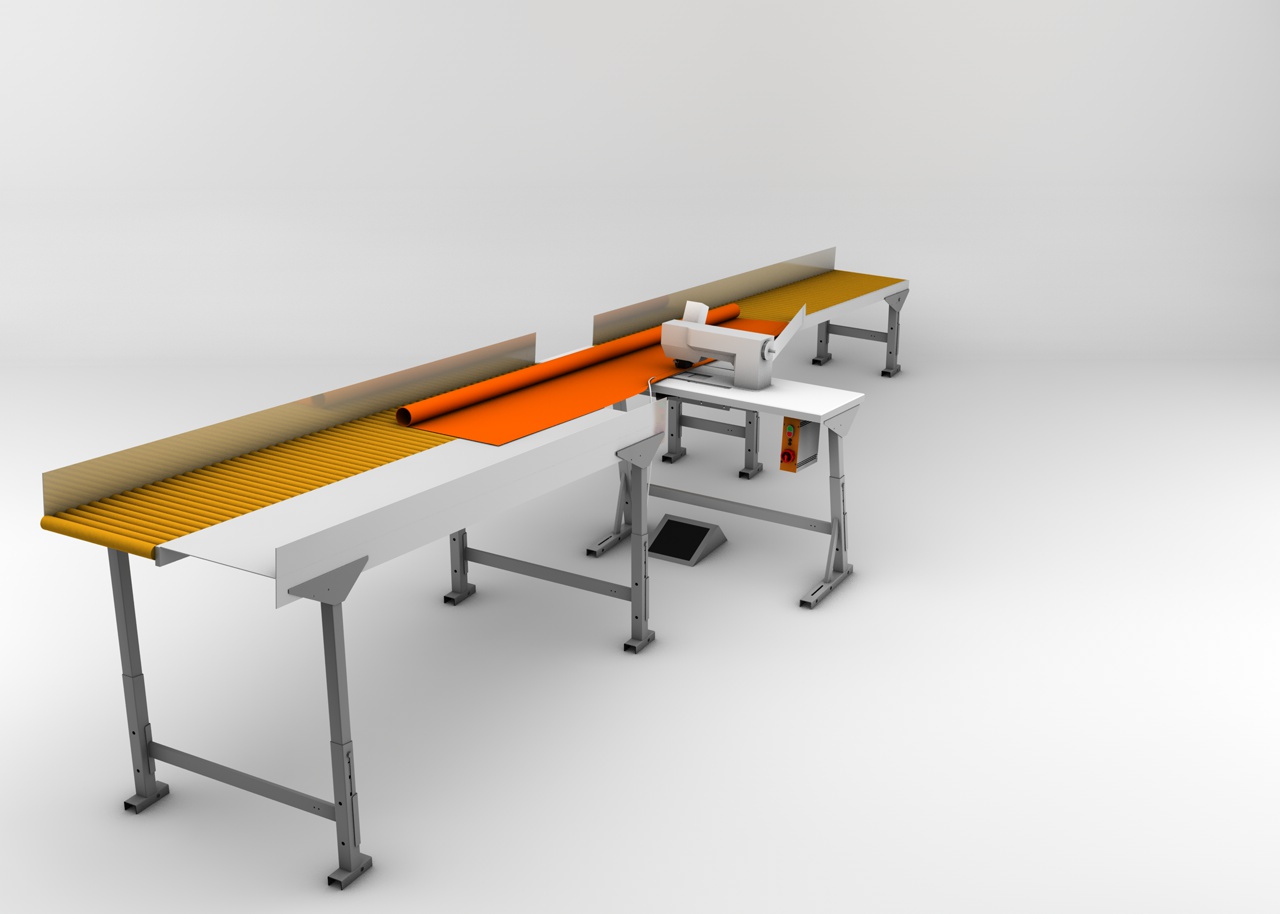

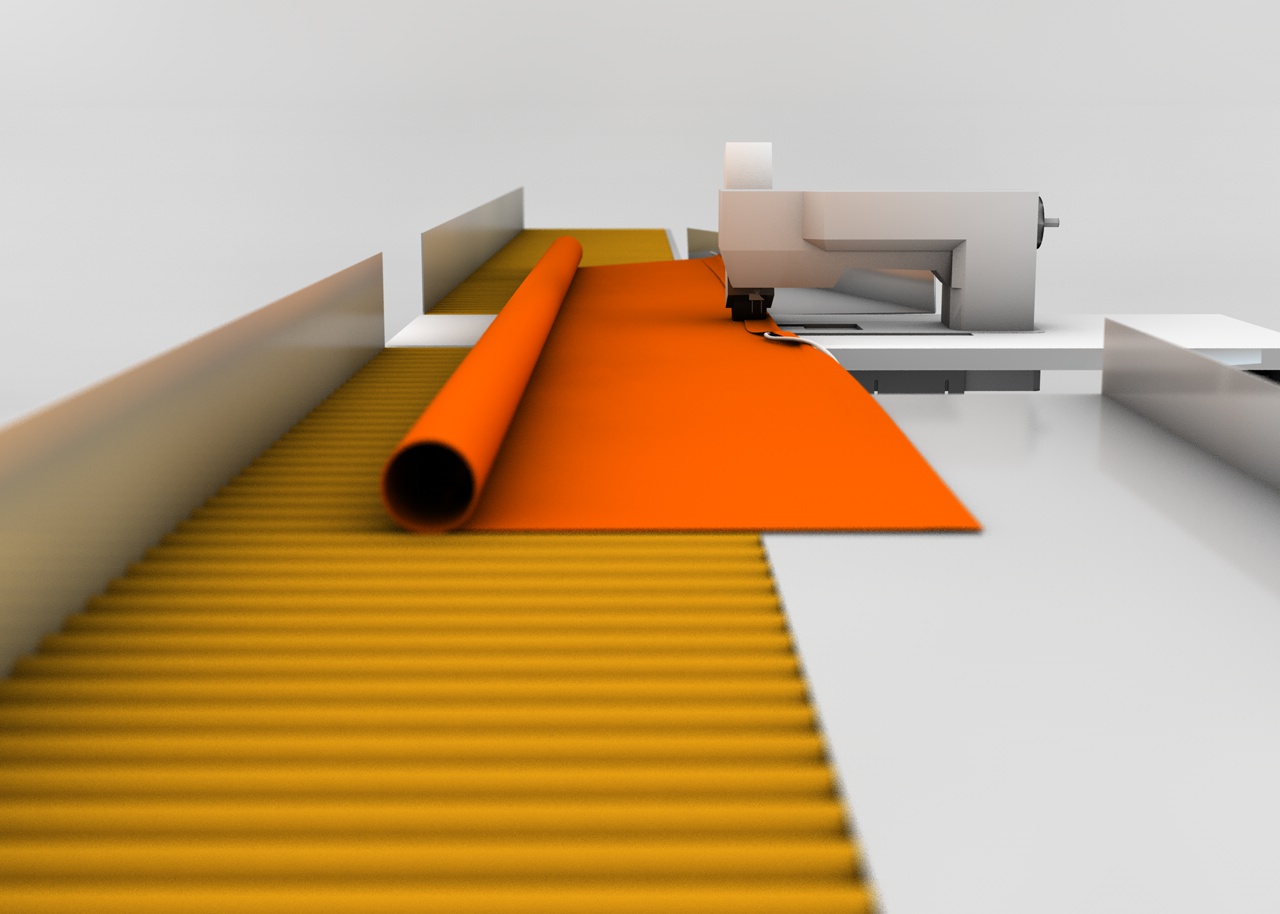

Slanted roller table besides the sewing machine to put the rolled awning. Sewing machine with seicial presser foot and guiding device with or without piping feed for precise guiding of the fabric. Intermittend Puller behind the sewing machine to ensure exact transport of the awning on the roller table and regular stitch length.
