CUTSONIC

CUTTING MACHINE

THE ALLROUNDER

The CUTSONIC cutting machine offers the perfect opportunity to manually cut textiles to size. Simple and efficient.

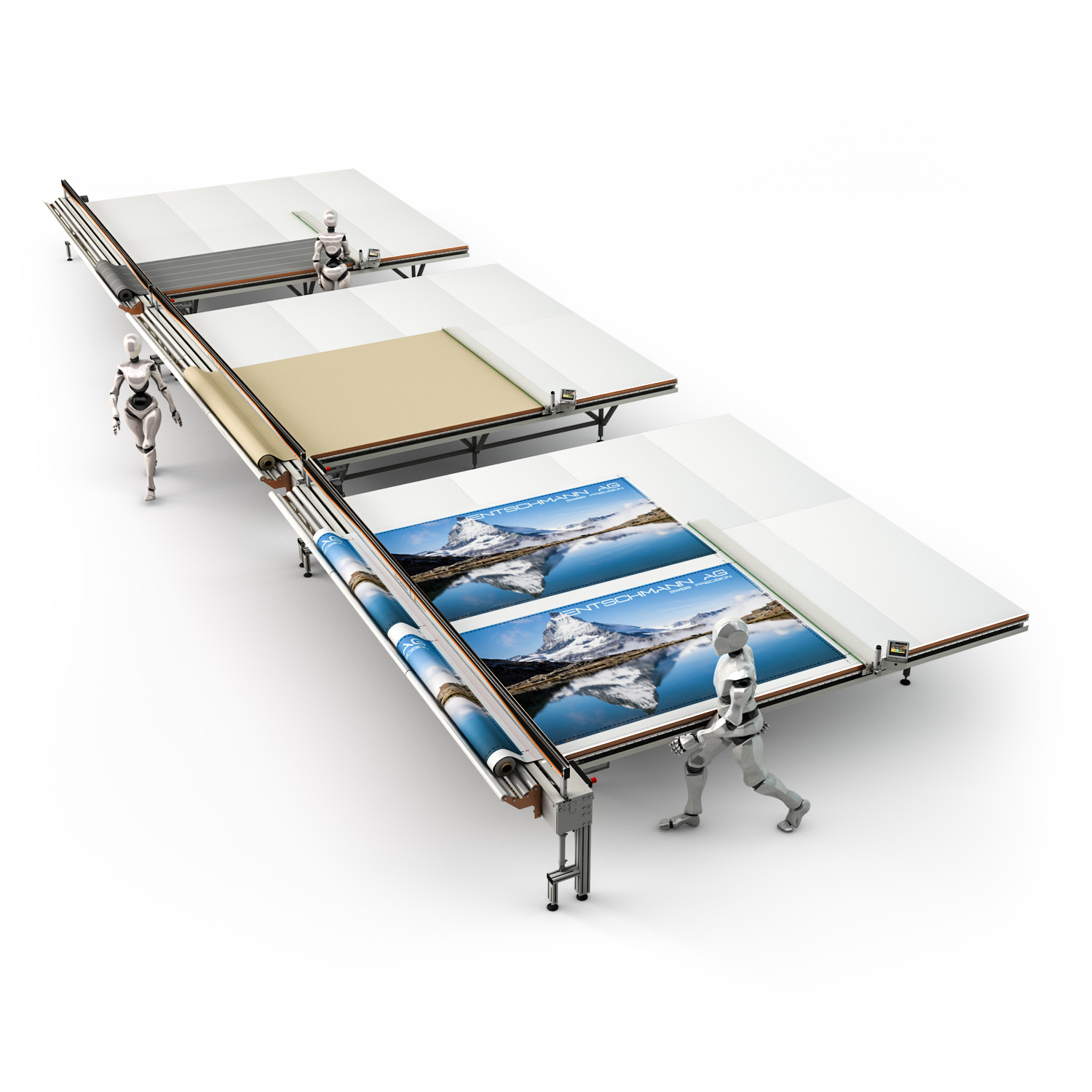

Whether tarpaulins & banners, roller blinds, PVC screens or awnings, by using different cutting tools, almost any textile can be cut.

SMART FEATURES

CHOOSE YOUR CUTTING TOOL

You can choose between two cutting tools - ultrasonic and cold knife. If the edge of the textile needs to be sealed and protected against fraying, the ultrasonic knife is suitable.

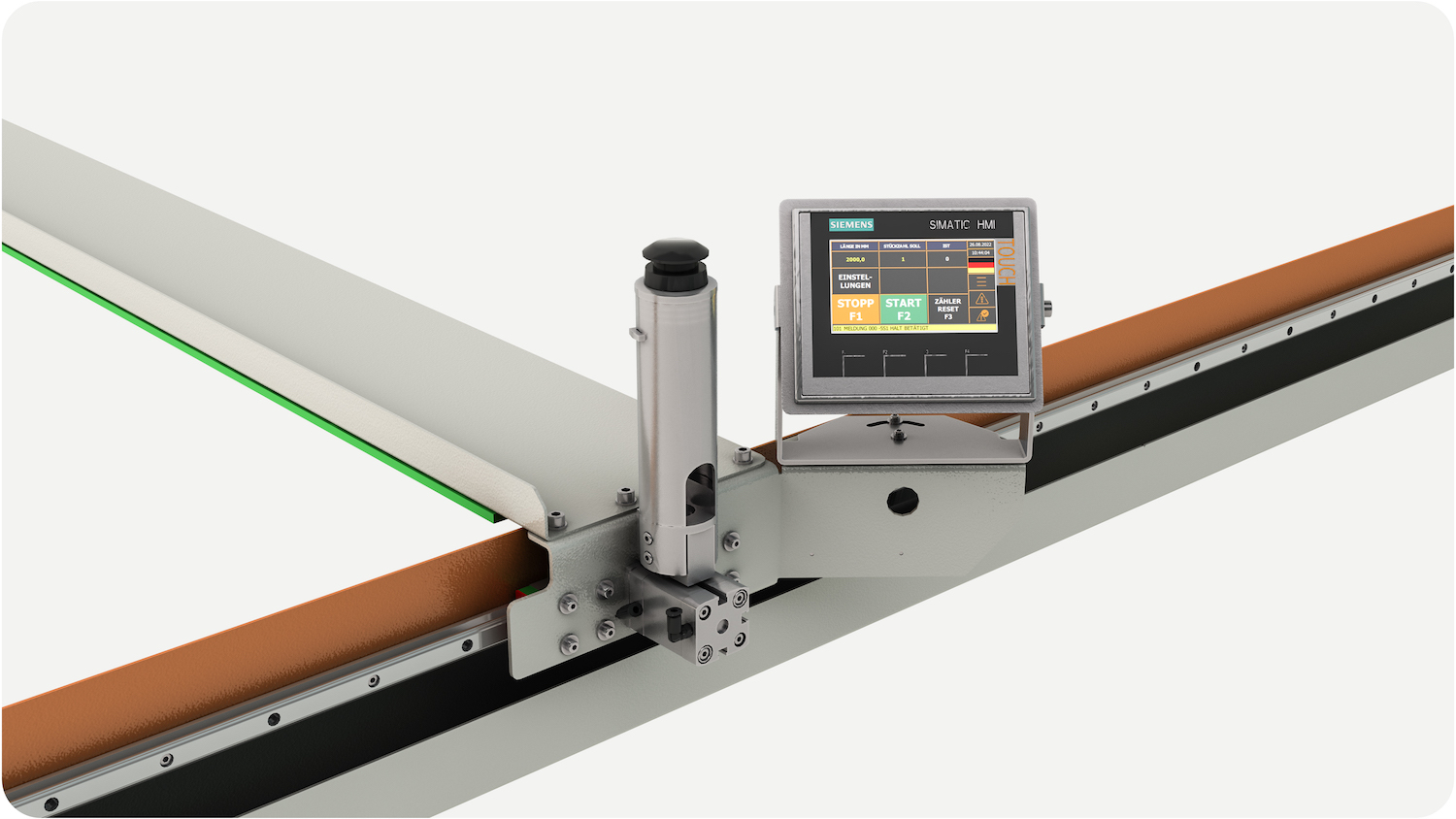

DIGITAL TOUCH DISPLAY

The manually adjustable stop has a digital display of the set dimension. The cross cut can also be carried out via the display.

TOOL CHANGING SYSTEM

If there is more than one cutting tool in the machine, it is possible to switch between the ultrasonic and cold knife simply by pressing a button.

TECHNICAL DATA

The data may vary depending on the version.

  • Operating lengths
     Operating length:  Machine length (ML):
     4.200mm 5.000mm
  • Technical data

    Cutting tool: ultrasonic + cold knife
    Standard table size: 4m x 4,2m
    Cutting speed:     adjustable

  • Fabric types

    Suitable for processing technical textiles such as: PVC coated fabrics, polyester fabrics, acrylic fabrics, etc.

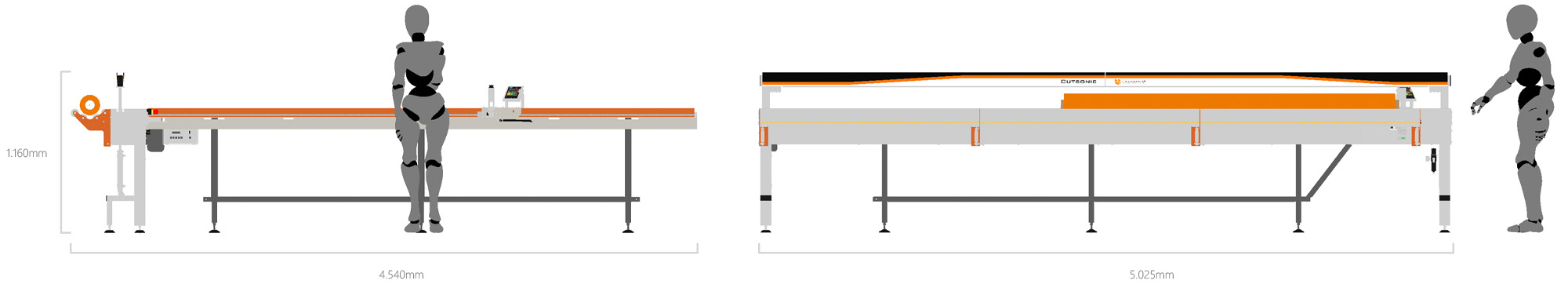

  • Dimension and weight

    Height: 1.160mm (working height 900mm)
    Length: 5.025mm
    Depth: 4.540mm

    Weight: app. 1.100kg (depending on equipment)

  • Connection

    Electrical power: 230V / 50Hz, 1 Phase, 16A
    Pneumatics: Ø 8mm, stable 6bar, dry, oil-free
