Weldsonic™ Solo

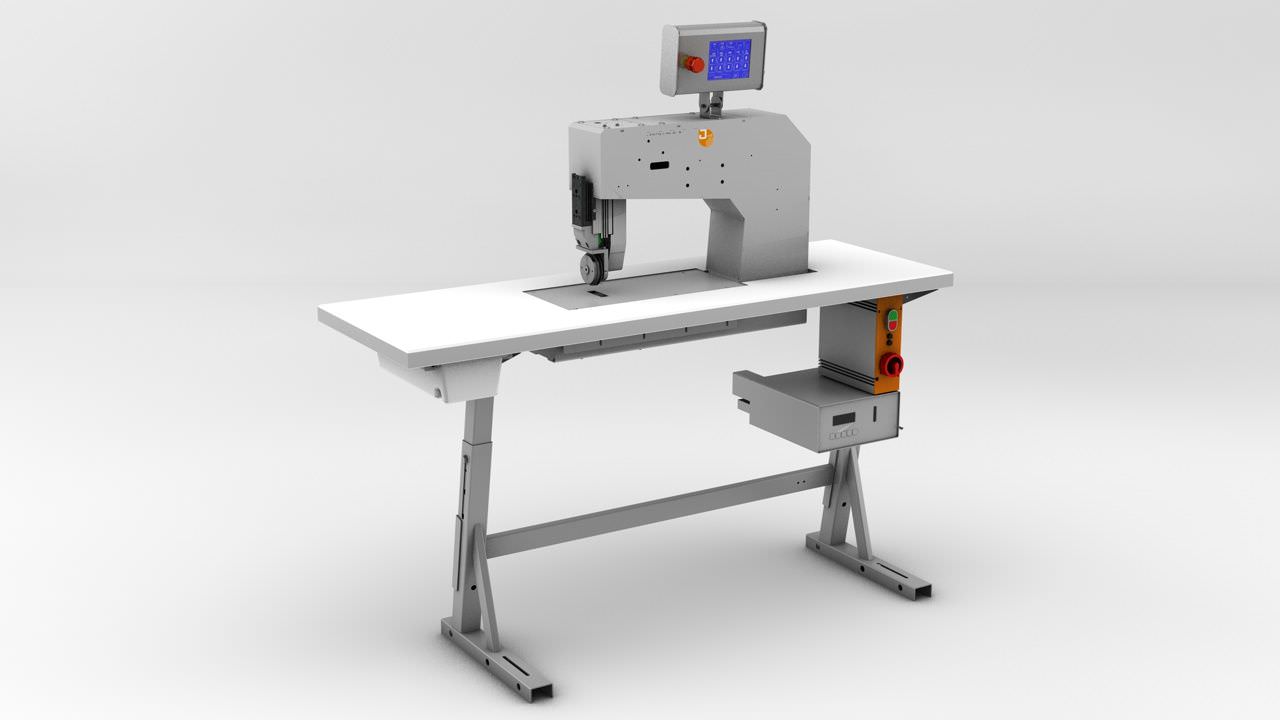

The Jentschmann Weldsonic™ Solo is a stand-alone flatbed Ultrasonic welding machine for continuous cutting or gluing of fabrics and similar materials by means of heat activated adhesive tapes and welding of thermoplastic-coated membranes.

Application

The Jentschmann Weldsonic™ Solo is a stand-alone flatbed Ultrasonic welding machine for continuous cutting or gluing of fabrics and similar materials by means of heat activated adhesive tapes and welding of thermoplastic-coated membranes.

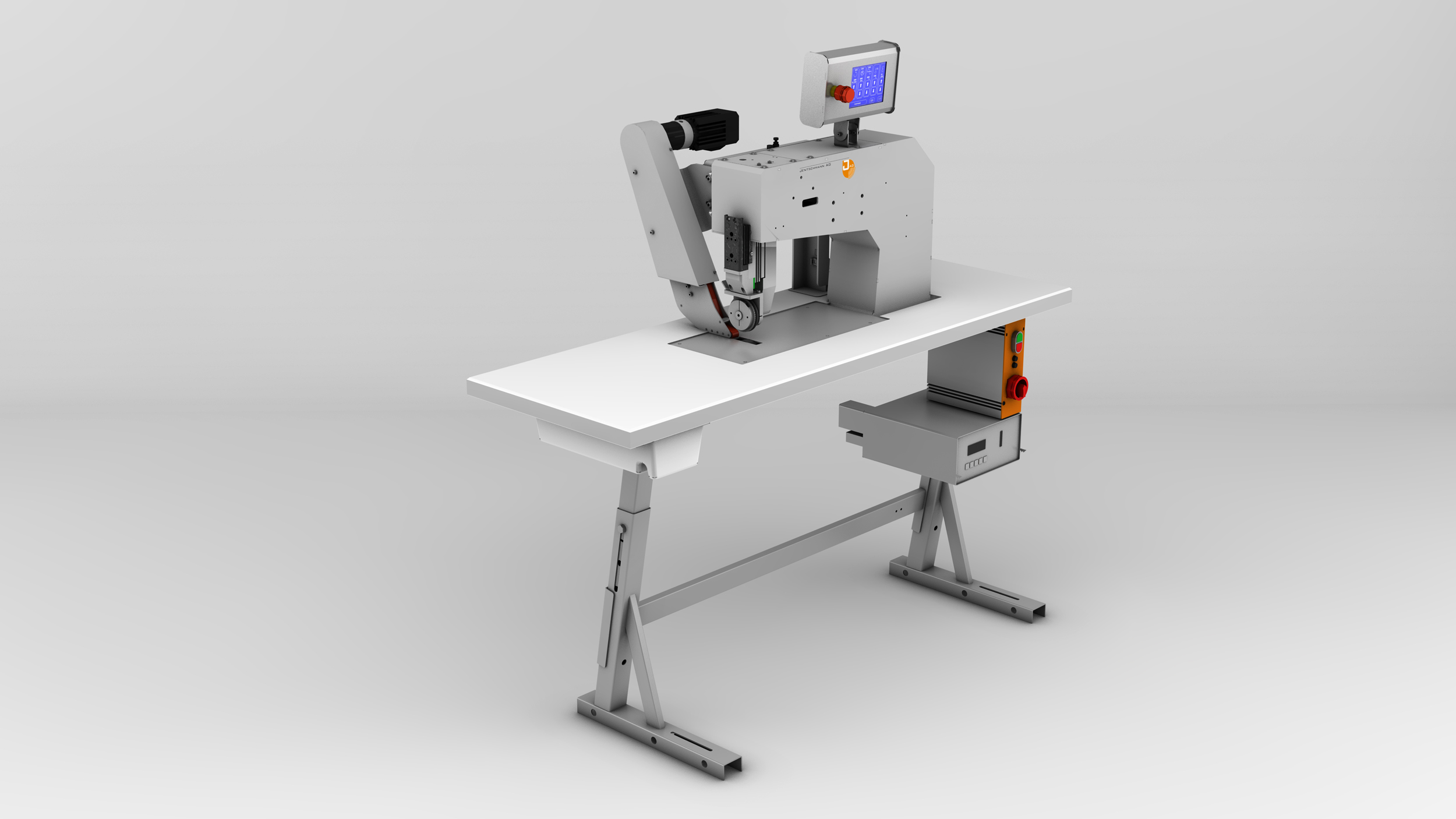

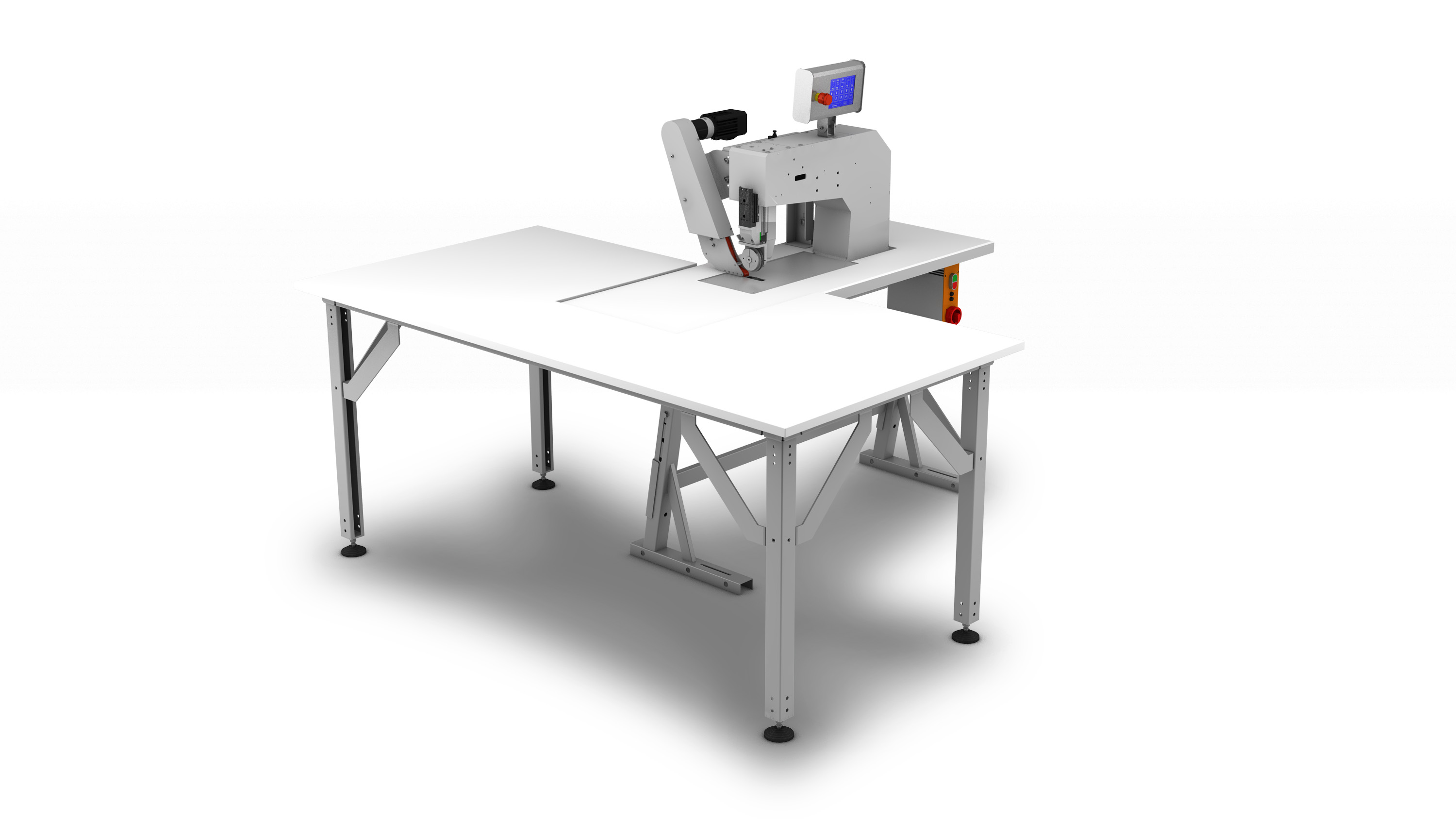

Optionally, a puller for the transport of heavy materials can be assembled. This puller ensures the continuous transport of material, thus ensuring a consistent seam quality.

Operation

39 Picto CutWeld39 Picto CutWeld39 Picto CutWeld39 Picto CutWeld 39 Picto CutWeld39 Picto CutWeld

Characteristics

  • Welding head consisting of solid welded steel sheets
  • Sonotrode and anvil roller drive ratio independently adjustable
  • Adjustment of amplitude and /or anvil roller pressure proportional to welding speed
  • Fabric guides with integrated adhesive tape feed available
  • Manual setting of welding parameters
  • Very low power consumption without power peaks
  • Environment-friendly! No microwaves, no fumes!
  • Ultrasonic Generator: 35 kHz, 400/600W
  • Welding width: 7/11/20 mm
  • Welding Speed: 0.3 – 10m/min
  • Table Dimensions: Width 1500 x 500, Height 850 mm
  • Electric input: 1x230V/10A
  • Compressed air: stable 6 bar, dry, oil-free

Concept

The materials are placed between the sonotrode and cutting wheel or anvil, which is pneumatically lowered by operator using foot pedal control. Operating speed is controlled by variable speed foot pedal. Optional application specific guides align material and adhesive film.
